Ntsiab nta ntawm15KW Lithium roj teeb rau hnub ci cia
● ZooSkev nyab xeebPkev ua tau zoo,Green thiabPollution-dawb
Lub siab - zoo phosphate muaj pes tsawg leeg nyob rau hauv LiFePO4 roj teeb tshem tawm qhov kev pheej hmoo ntawm tawg thiab combustion tshwm sim los ntawm overcharge thiab luv luv Circuit Court nyob rau hauv lub siab, tsis tu, thiab roj, tsis muaj hluav taws, tsis muaj hnab, tsis muaj suab nrov, tsis muaj to. Tsis yog- lom, tsis yog- ua paug, tsis muaj cov hlau tsis tshua muaj lossis hnyav.
● Broj teebMkev ntxhov siabSSystem (BMS)
Ua -hauv BMS ntse saib xyuas roj teeb voltage, tam sim no, kub, thiab luv luv circuits. Raws li kev tiv thaiv kev tiv thaiv kev ua haujlwm, khaws cia lub zog, tuaj yeem kuaj xyuas lub zog tsis ua haujlwm, thiab lub zog hluav taws xob thaum lub phiaj xwm tsis ua haujlwm. Thiab sib npaug ntawm lub roj teeb thaum lub sij hawm them thiab tawm mus rau lub neej ntev.
● Yooj yimInstallation thiabSpaceSaving
Cov tsos yog yooj yim thiab fashionable, stacked khib thiab lwm yam txawv tsos thiab kev ua haujlwm yuav tsum tau, yooj yim rau nruab, kom tau raws li qhov zoo nkauj tsim kev nkag siab ntawm koj lub tsev kho kom zoo nkauj.
● Yooj yim rau kev khiav lag luam, Ntau daim ntawv thov
Kev them nyiaj ntau hom, tsim qauv, muaj zog sib koom ua ke, ua haujlwm yooj yim thiab txij nkawm. Match ntau yam hybrid thiab off-grid inverter hom, thiab sib txuas lus nrog ntau-brand inverters tib lub sijhawm. Daim phiaj- txuas thiab tawm- daim phiaj tsis siv neeg hloov pauv tuaj yeem hloov mus rau qhov nyuaj ntawm daim phiaj hluav taws xob ib puag ncig, txuag nqi hluav taws xob, thiab txo qis kev vam khom rau pej xeem daim phiaj hluav taws xob.
● PzooLua edAcidRhloov chaw
Kev tso tawm tau zoo, them ceev ceev, qis tus kheej - paug, tsis muaj kev nco, muaj peev xwm siab, lub neej ntev (4000+)
● LCDToojDisplay
Koj tuaj yeem teeb tsa lub sijhawm ua haujlwm, thiab saib xyuas lub sijhawm tiag tiag - lub sijhawm roj teeb tawm, tiag - lub sijhawm muaj peev xwm seem, roj teeb hluav taws xob, thiab lwm yam xwm txheej txhua lub sijhawm, nrog ntau yam kev sib txuas lus sib txuas, thiab ib puag ncig saib xyuas wireless. Txheeb xyuas cov roj teeb ua haujlwm kom raug.
● Smart Functions
Intelligent Bluetooth system tuaj yeem txhawb nqa lub computer, network, thiab APP, khiav lub rooj vag tswj qhov system, thiab saib xyuas kev siv hluav taws xob. Nrog RS485 / RS232 / CAN kev sib txuas lus ua haujlwm.
|
Roj teeb module |
||||
|
Module qauv |
51.2v 50 aw |
51.2V 100 AW | ||
|
Hom roj teeb |
LiFePO4 |
LiFePO4 |
||
|
Serial / Parallel |
16S1P |
16S1P |
||
|
Module qhov ntev |
530 * 420 * 161 hli |
558 * 470 * 161 hli |
||
|
Module hnyav |
30 KG |
41,5 KG |
||
|
Tus naj npawb ntawm modules |
3 Pcs |
4 Pcs |
3 Pcs |
4 Pcs |
|
System parameters |
||||
|
Rated voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
Ua haujlwm voltage |
40V-58.4V |
40V-58.4V |
40V-58.4V |
40V-58.4V |
|
Charge voltage |
54.4V-55.2V |
54.4V-55.2V |
54.4V-55.2V |
54.4V-55.2V |
|
Floating charge voltage |
53.6V-54.4V |
53.6V-54.4V |
53.6V-54.4V |
53.6V-54.4V |
|
Rated peev |
150 Aw |
200 Aw |
300 Aw |
400 Aw |
|
Zog |
7.68 qw |
10.24 KWG |
15.36 Nws |
20.48 Nws |
|
Rated nqi tam sim no |
100A |
|||
|
Peak nqi tam sim no |
105A |
|||
|
Rated tawm tam sim no |
100A |
|||
|
Peak tawm tam sim no |
105A |
|||
|
Charge kub |
0-55 degree |
|||
|
Tshem tawm kub |
-10-55 ° C |
|||
|
Qhov kub zoo tshaj |
15-25 ° C |
|||
|
Txoj kev txias |
Ntuj cua txias |
|||
|
txheeb ze humidity |
5%-95% |
|||
|
Qhov siab |
Tsawg dua lossis sib npaug li 2000M |
|||
|
Lub neej voj voog |
Ntau tshaj lossis sib npaug rau 4000 cycles @ 80% DOD, 0.5C / 0.5C, 25 degree |
|||
|
Kev sib txuas lus interfaces |
CAN 2.0 / RS485 / Qhuav |
|||
|
Kev tiv thaiv |
Tshaj kub, dhau tam sim no, dhau voltage, rwb thaiv tsev thiab lwm yam kev tiv thaiv ntau yam |
|||
|
Zaub |
LCD |
|||
|
Tsim lub neej |
Ntau dua lossis sib npaug li 10 xyoo |
|||
|
Qhov Loj (L * W * H) |
530 * 420 * 679 hli |
530 * 420 * 819 hli |
558 * 470 * 679 hli |
558 * 470 * 819 hli |
|
Qhov hnyav |
Txog 110KG |
Txog 140KG |
Txog 144.5KG |
Txog 186KG |
Safer Thiab Ntse
Vim li cas CoPow Roj Teeb muaj kev nyab xeeb dua
Yog vim li cas CoPow Roj teeb yog Smarter
CoPow roj teeb, nyab xeeb thiab ntse dua, ib txwm txias.
Koj Qhov Zoo Tshaj Supplierrau 15KW Lithium roj teeb rau hnub ci cia
★nplua nujExperience thiabSR & D tsimSzog
Nrog rau qhov nruab nrab ntawm ntau tshaj 20 xyoo ntawm kev paub nyob rau hauv lithium-ion roj teeb tej yaam num, ib tug muaj zog R & D pab neeg los ntawm kev lag luam cov thawj coj CATL, EVE, BYD, OptimumNano, thiab cov neeg muas zaub nyob rau hauv ntau tshaj 40 lub teb chaws, peb muaj peev xwm tsim tshwj xeeb LiFePO4 roj teeb kev daws teeb meem uas mus dhau tsuas yog muag lithium roj teeb.
1. Kev sab laj kev daws teeb meem
Peb ib txwm muab cov neeg siv khoom xav tau hauv thawj qhov chaw, thiab teb sai sai hauv 24 teev, muab cov kev daws teeb meem zoo tshaj plaws rau koj thiab cov khoom lag luam zoo tshaj plaws.
2. nrujQualityCtswj
Peb lub roj teeb LiFePO4 dhau los ntawm ntau qhov kev tshuaj xyuas thiab kev sim ua ntej tawm hauv lub hoobkas. Txhua theem yog tswj nruj me ntsis kom ntseeg tau tias muaj kev ntseeg siab thiab sib xws ntawm cov khoom. Txhua yam khoom muaj peb lub tuam txhab cov ntawv cim tshwj xeeb los xyuas kom meej qhov pom thiab traceability ntawm cov khoom.
3. CoreCompetitiveness
Peb siv TOP brand tshiab Class A roj teeb units thiab TOP BMS los xyuas kom meej qhov zoo thiab kev nyab xeeb ntawm cov roj teeb los ntawm cov khoom tseem ceeb tshaj plaws.
4. ExcellentSkev ervice
Tsis muaj gimmicks, peb xyoos lav, uas tuaj yeem txuas ntxiv mus rau tsib xyoos, thiab ntev -cov lus qhia kev qhia.
TOP CoPow R&D Team
Nrog 20 xyoo dhau los ntawm qhov nruab nrab
Nrog tshwj xeeb-tseem ceeb cov kws tshaj lij ua tus pob txha,
CoPow R & D pab neeg tsis tu ncua rau kev tsim kho thev naus laus zis.
Cov txheej txheem tseem ceeb ntawm LiFePO4 roj teeb
Nrog rau kev tswj hwm kev nyab xeeb zoo tshaj plaws, kom ua tiav kev saib xyuas cov khoom zoo, txhim kho peb cov kev ua haujlwm zoo, txhim khu kev qha kev tswj xyuas zoo tuaj yeem tiv thaiv koj cov kev txaus siab. Cov ntaub ntawv pov thawj 15kwh lithium roj teeb rau hnub ci cia ua rau koj ntseeg tau ntau dua.
Dav Compatible Inverters
Daim ntawv thov

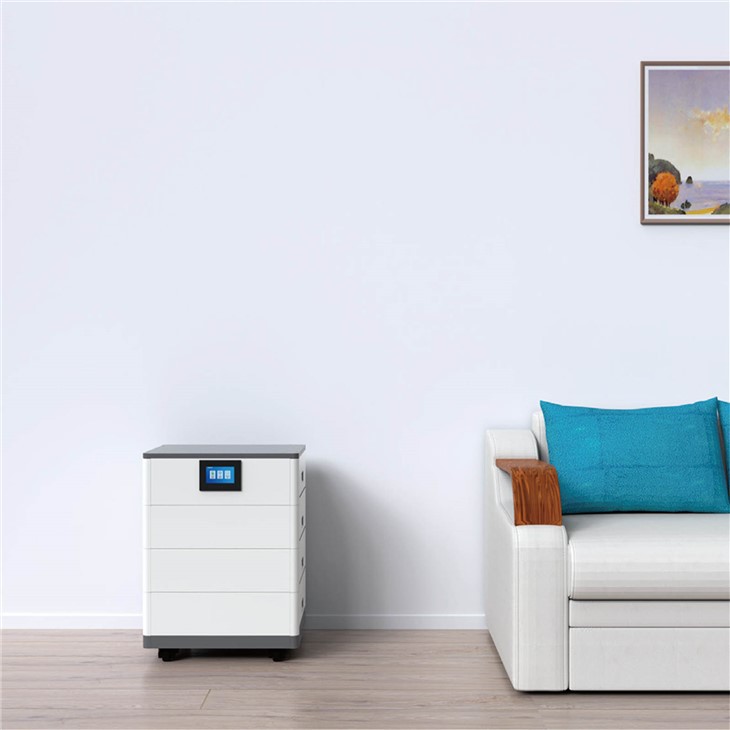

Lub roj teeb 15KWh LiFePO4 siv tus kheej - hom txias kom txo cov suab nrov. Ua kom cov zis ntau dua thiab muaj peev xwm los ntawm kev hloov pauv hloov tau siv ntau lub roj teeb modules. Kev txhim kho yooj yim thiab tsim qauv yooj yim yog cov kev daws teeb meem zoo tshaj plaws rau cov tsev thiab cov lag luam me. Kev siv hluav taws xob tsis tu ncua thaum muaj kev puas tsuaj ntuj xws li dej nyab, cua daj cua dub, thiab hluav taws xob poob rau lwm yam laj thawj. Lub Huanduy Power Storage System tuaj yeem pab nyiaj rau koj siv hluav taws xob txhua hnub thiab muab kev ruaj ntseg tiv thaiv kab sib chaws tsis ua haujlwm.
Advanced BMS thiab kov- pom LCD tsim, muaj kev nyab xeeb thiab ntse dua, cia koj saib xyuas lub zog hluav taws xob txhua lub sijhawm, siv so kom paub tseeb, tsim nyog rau tsev nyob.
Roj teeb dual MPPT input, dav voltage ntau, haum rau cov kev xav tau ntawm lub ru tsev sib txawv, kom ua tau raws li qhov xav tau ntawm lub tsev cia khoom.
Peb lub roj teeb tau ua ke EMS, txuag hluav taws xob, tsis siv neeg lub zog cia tib lub sijhawm tuaj yeem kuaj xyuas lub zog tsis ua haujlwm, thiab hauv kab sib chaws tsis ua haujlwm tib lub sijhawm rau koj lub tsev siv hluav taws xob, tsis tas yuav txhawj xeeb txog lub zog tsis ua haujlwm.
15KWh roj teeb muaj peev xwm loj thiab ua haujlwm siab, thiab tuaj yeem ua tau raws li feem ntau ntawm tsev neeg thauj khoom tib lub sijhawm, hnub ci them, uas tso cai rau koj cov khoom siv hluav taws xob khiav tau ob peb hnub, yog qhov kev xaiv zoo tshaj plaws rau tsev neeg lub zog.
Kev tshuaj xyuas neeg siv khoom
CoPow roj teeb, nyab xeeb thiab ntse dua, ib txwm txias.
Ib txwm saib xyuas los ntawm cov neeg siv khoom thoob plaws ntiaj teb.
FAQ
(1)Nws yog 15 kWSolarSsystemSsiv tau rauHua omUyog?
Nyob zoo, 15kW hnub ci system yog tsim rau cov tsev neeg zoo tib yam uas siv ntau tshaj 50Kwh ib hnub nyob rau nruab nrab, tab sis nws yog ib qho kev xaiv zoo rau kev siv hluav taws xob siab thiab cov tsev neeg siv hluav taws xob tsawg uas xav tawm mus rau - kab sib chaws. Tsis tas li ntawd, koj yuav tsum muaj qhov chaw ru tsev txaus los nruab nws.
(2) Ua li casLongWua 15kwBroj teeb Power ibHsiv?
Raws li qhov xwm txheej ib txwm muaj, lub tsev nruab nrab xav tau 750-1000W hluav taws xob ib teev, thiab thaum muaj hluav taws xob hluav taws xob, 15KWh LiFePO4 roj teeb tuaj yeem txuas ntxiv rau lub tsev rau 15-19 teev.
(3) TauYkojRibIt WhloCharging rauSolar?
Yog lawm, koj tuaj yeem siv tau lwm yam khoom siv thaum lub roj teeb them.
(4) Puas Xav tauPtus kws tshaj lijInstallations, lubWe Cib Do It Opeb tus kheej?
Peb muaj cov lus qhia installation rau lub system. Koj tuaj yeem ua raws li cov lus qhia txhawm rau txhim kho koj tus kheej, tab sis kuv xav tias nws muaj kev nyab xeeb dua kom muaj kev teeb tsa los ntawm tus kws tshaj lij.
(5) CovMqhov kawgPtus tswvLua oadCibBe Stxhawb?
Nyob zoo, 15KWh roj teeb tuaj yeem nqa mus txog 20KW cov khoom siv hluav taws xob.
(6) Kuv tuaj yeemUseAnyLyamCharger rauThais?
Yog lawm, tab sis kuv pom zoo kom siv tib tus qauv ntawm lithium roj teeb charger li 20Kwh.
