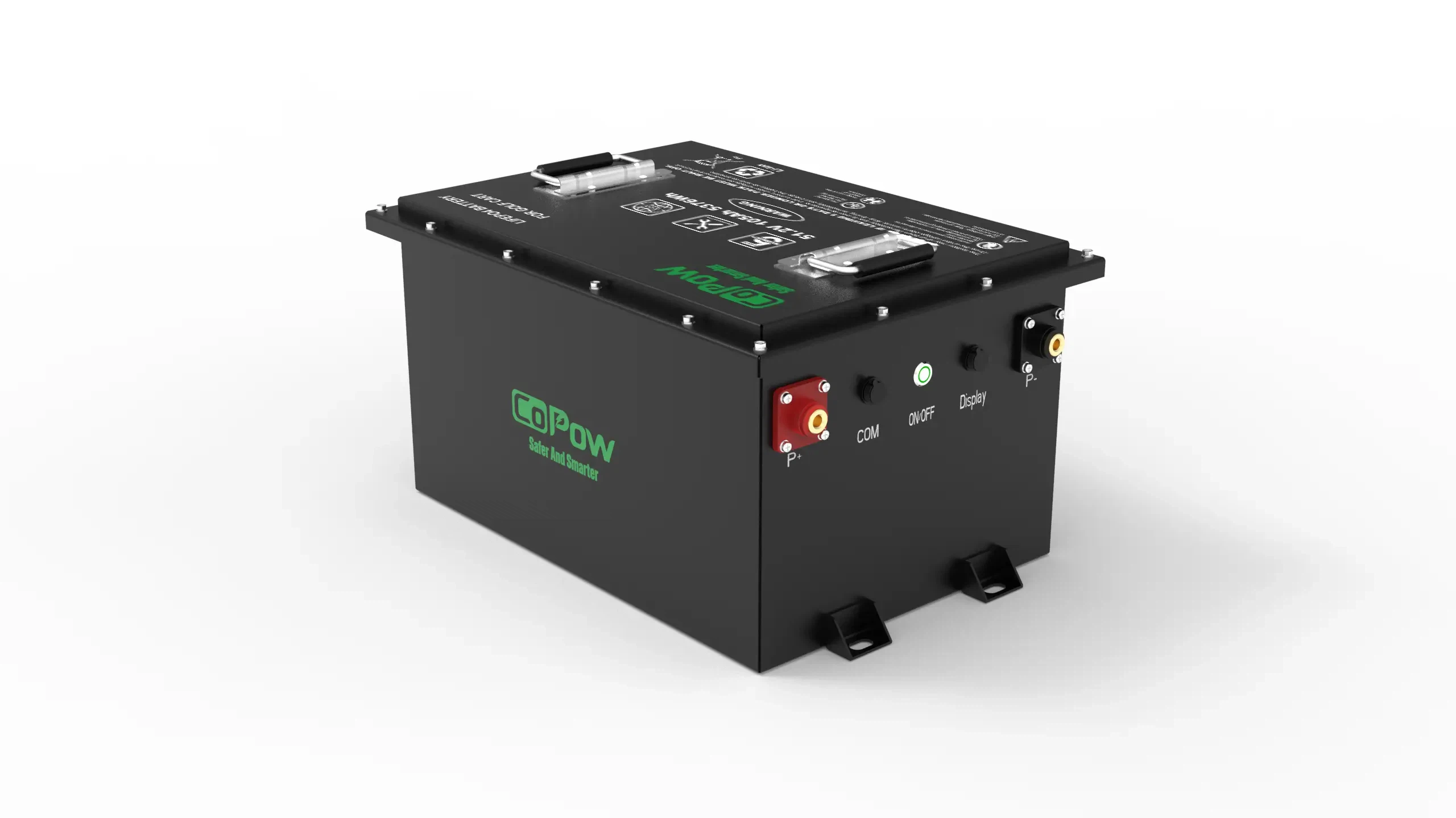

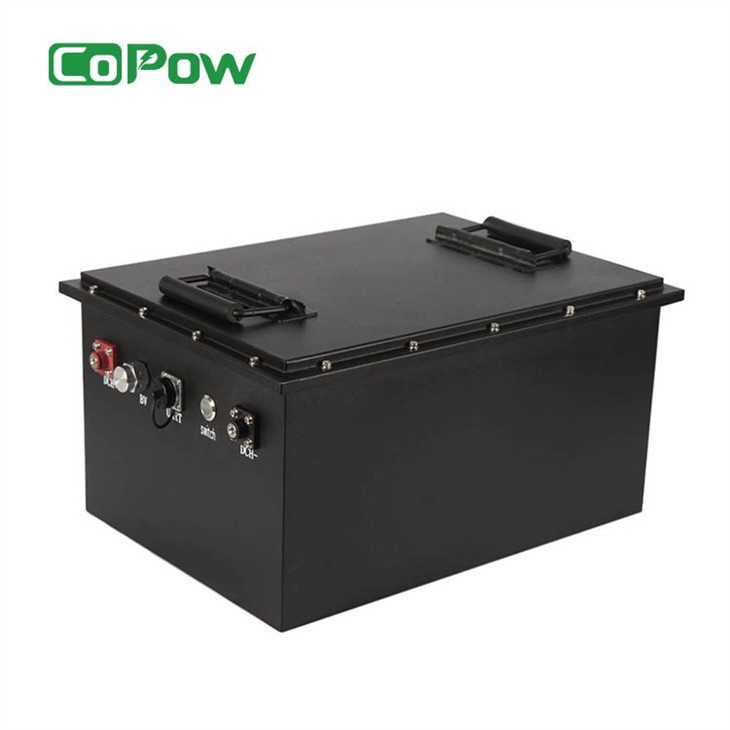

Cov txiaj ntsig ntawm 48V 105Ah Lithium Golf Cart Roj teeb
Yog tias koj nkees nkees ntawm qhov hnyav, cov hlau lead qub -acid roj teeb hauv koj lub laub golf uas tas li yuav tsum tau siv dej ntxiv thiab kho,COPOW 48V 105Ah lithium roj teebyog tsim raws nraim rau qhov xwm txheej no. Nws yog qhov tseebpoob- nyob rau hauv hloov, tso cai rau kev teeb tsa ncaj qha yam tsis muaj kev hloov kho nyuaj.
Ua nrogEVE Qib A hlwb, lub roj teeb muab kev ua haujlwm ruaj khov tshwj xeeb thiab ntev - lub zog kav ntev. Qhov tseem ceeb tshaj, nws los nrog kev sib xyaw ua kelifepo4 roj teeb tswj qhov system, tiv thaiv overcharging, luv luv Circuit Court, thiab lwm yam muaj feem xyuam rau kev nyab xeeb.
Piv nrog cov hmoov lead-acid roj teeb, nws yog qhov hnyav heev thiab kev saib xyuas tag nrho -dawb- tsis tas yuav tsum muaj dej. Ib zaug ntsia, koj tuaj yeem hais lus zoo rau kev tu siab thiab txaus siab rau kev txhawj xeeb- tsav tsheb dawb mus txog kaum xyoo.
Copow 48v 105ah Lithium Golf Cart Battery Specifications
| Tsis muaj. | Yam khoom | General Parameter | Txuj | Txoj Kev Xeem |
|---|---|---|---|---|
| 1 | Rated Peev Xwm | 105 Aw | 105 Aw | Tom qabtxheem nqi, tso tawm ntawm 0.5C kom kawg - ntawm - tawm hluav taws xob, rov ua dua 3 cycles. Ib lub voj voog tsim nyog tau raws li tus qauv. |
| 2 | Nominal voltage | 51.2 V (16S) | 51.2 V | Ntsuas tom qab tus nqi them. |
| 3 | Standard Charge Voltage | 58.4 V | 58.4 V | CC-CV them profile rauLiFePO4 roj teeb. |
| 4 | Txoj kev them nqi | CC-CV | CC-CV | Tsis tu ncua tam sim no - qhov tsis tu ncua voltage them txoj kev. |
| 5 | Charge tam sim no | Ib txwm: 20 A; Max: 100 A | Ib txwm: 20 A; Max: 100 A | Saib xyuas cov roj teeb tam sim no thaum them nyiaj. |
| 6 | Txiav- tawm qhov hluav taws xob | 40 V | 40 V | Voltage ntawm qhov tso tawm nres. |
| 7 | Standard Continuous Discharge Current | 105 A (1C) | 105 A | Kev tso tawm tsis tu ncua raws li tus qauv txheej txheem. |
| 8 | Max Continuous Discharge Current | 250A (BMS) | 250 A | Tswj los ntawm BMS kom muaj kev nyab xeeb. |
| 9 | Peak Discharge Current | 300 A @ 30 s; 600 A @ 3s (BMS) | 300 A @ 30 s; 600 A @ 3 s | Saib xyuas los ntawm BMS los tiv thaiv kev puas tsuaj. |
| 10 | Kev sib txuas lus | Bluetooth / CAN / RS485 | Bluetooth / CAN / RS485 | Kev sib txuas lus raws tu qauv rau kev saib xyuas roj teeb. |
| 11 | Zaub Screen | xaiv tau | xaiv tau | Yeem tso saib rauroj teeb xwm txheej. |
| 12 | Charger | Optional, 15 A-50 A | xaiv tau | Sab nraud charger xaiv. |
| 13 | Qhov hnyav tag nrho | 43.5 kg ib | 4 3,5kg | Ntsuas nrog txheem ntim. |
| 14 | Sab hauv Impedance | Tsawg dua lossis sib npaug li 30 mΩ | Tsawg dua lossis sib npaug li 30 mΩ | Ntsuas ntawm 1000 Hz AC. |
| 15 | Ua haujlwm kub | Them nqi: 0-55 degree; Tawm tawm: -20-60 degree | 0-55 ° C / -20-60 ° C | Qhov kub thiab txias rau kev them nqi thiab tawm. |
| 16 | Cia ib puag ncig | Kub: 10-45 ℃; Humidity: Tsawg dua lossis sib npaug li 75% RH | 10-45 degree; Tsawg dua lossis sib npaug li 75% RH | Tsim nyogkhaws ciatswj kev ua haujlwm ntawm roj teeb. |
| 17 | Lub neej voj voog | 1C @ 100% DOD Ntau dua lossis sib npaug rau 3,500 cycles; 0.2C @ 100% DOD Ntau dua lossis sib npaug rau 6,000 cycles | Ntau dua lossis sib npaug rau 3,500 / Ntau dua lossis sib npaug rau 6,000 cycles | Cycle test nyob rau hauv cov xwm txheej. |
| 18 | Tus kheej -Tus nqi tso tawm | Tsawg dua lossis sib npaug li 3% / hli | Tsawg dua lossis sib npaug li 3% / hli | Txhua hli tus kheej - tso tawm raws li ib txwm muaj. |
| 19 | Qib tiv thaiv | IP65 | IP65 | Ingress tiv thaiv ntsuas. |
| 20 | Roj teeb Dimensions | L: 390 ± 2 hli; W: 311 ± 2 hli; H: 270 ± 2 hli | 390 × 311 × 270 hli | Ntsuas nrog tus qauv kam rau ua. |
Chaw Nyob Chaw Nyob:Chentou Xin Times Lub Tsev, No. 2009 Pingshan Avenue Pingshan District Shenzhen, Suav.
Txhim kho koj lub caij nrog Copow Lithium Golf Cart Roj Teeb Hloov Cov Khoom Siv
Txhua CoPow lithium golf laub roj teeblos nrog lub charger tshwj xeeb uas tsis muaj nqi ntxiv. Yog tias koj cheeb tsam xav tau hom ntsaws tshwj xeeb, CoPow tuaj yeem muab lub charger customized kom tau raws li koj xav tau.
Tshaj li lub charger, tag nrho cov khoom siv tau pom hauv cov duab saum toj no yog xaiv tau thiabtuaj yeem xaiv raws li koj qhov kev xav tau tiag tiag.
CoPow LiFePO4 golf laub roj teeb tuaj yeem mus deb npaum li cas?
Universal Lithium Golf Cart Roj teeb tau tshaj nrog Feem ntau Golf Cart Hom
Xauv qhov zoo ntawm Copow Lithium Golf Cart Roj teeb
Case Studies ntawm COPOW Lithium Golf Cart Roj Teeb
Hluav taws xob thaiv kev teeb tsa ntawm CoPow Golf Cart Roj teeb
Kev daws teeb meem rau CoPow Golf Cart Roj teeb
CoPow Ntse LiFePO4 Charger
CoPow Chaw Taws Teeb Saib Xyuas Golf Cart Roj Teeb
CoPow Lithium Golf Cart Roj Teeb - Shipping & Tag Nrho Tus Nqi Tshaj Tawm
| Tshooj | Paub meej |
|---|---|
| 1. Sib tw ncaj qha-los ntawm- Hoobkas nqi |
Tiered Discounts:Tus nqi hloov pauv raws li kev txiav txim ntim; bulk thiab cov neeg muag khoom xaj kom txuag tau ntau dua Kev them nyiaj yug qauv:Tus nqi tshwj xeeb rau thawj chav kuaj xyuas kom paub tseeb Qib A zoo |
| 2. Txhua yam -Included "Landed Cost" Solutions |
DDP Shipping:Tebchaws Asmeskas, Europe, Australia, thiab lwm thaj chaw - suav nrog kev thauj khoom, kev lis kev cai clearance, thiab cov haujlwm ntshuam Tiag - Lub Sijhawm Shipping Optimization:Pab neeg logistics suav cov nqi tshaj plaws - txoj hauv kev zoo raws li koj tus lej Zip Code |
| 3. Qhov tseeb tag nrho cov nqi nqe lus hauv 3 kauj ruam |
- Tus nqi ntawm cov khoom (raws li qhov ntau) - Customized Freight (Hiav txwv, Cua, Express) - Tax & Duty kwv yees (ua kom pom tseeb) |
| Vim li cas thiaj thov ib nqe lus los ntawm CoPow? |
- 2-teev teb:Kev kwv yees ua ntej hauv 2 teev ua haujlwm - Tsis Muaj Tus Nqi Nkaum:Cov ntawv tsocai raws nraim li koj them |
Tau txais Daim Ntawv Tso Cai Dawb
1. NtseBMS
CovCopow 48V 105Ah golf laub roj teebnta ib qho tsim ua - hauv BMS uas saib xyuas nws cov kev ua tau zoo tas li. Txawm hais tias nws yog overcharging, khiav lub roj teeb tsawg dhau, tam sim no surges, luv circuits, voltage instability, los yog overheating, lub kaw lus kicks tam sim ntawd. Nws cia li txiav tawm lub hwj chim los yog kho cov chaw kom cov roj teeb sab hauv ntawm lub hlwb kom tsis txhob puas.
Qhov kev tiv thaiv tiv thaiv no ua rau muaj teeb meem hluav taws xob feem ntau rau koj. Rau cov neeg siv, qhov no txhais tau tias muaj kev nyab xeeb dua thiab txhim khu kev qha caij tsheb, thaum tseem pab lub roj teeb ntev dua thiab txuag koj qhov hassle thaum ntxov.hloov.
2. Lub teebStsimDkos npe
Raws li qhov zoo tshaj plaws hauv Copow lineup, qhov noLiFePO4 roj teebrau hluav taws xob golf laubnta lub compact thiab lub teeb yuag. Qhov kev tsim no txuag qhov chaw muaj txiaj ntsig zoo thiab txo qhov kev thauj khoom tag nrho ntawm koj lub tsheb, ua rau kev tuav txhua hnub thiab kev ua haujlwm yooj yim dua.
3. Qhov Zoo Tshaj Plaws Lead-Acid Upgrade
Qhov no 48V 105Ah lithium roj teeb yogib qho kev ua tau zoo ncaj qha hloov dua siab tshiab ntawm cov hlau lead- cov kev xaiv kua qaub. Nws tsub nqi sai dua thiab tshem tawm kev ntxhov siab ntawm tus kheej - tso tawm. Qhov tseem ceeb tshaj plaws, nws tso cai rau koj siv nws lub peev xwm tag nrho nrog lub zog hloov pauv kev ua haujlwm siab, ua kom koj lub tsheb golf khiav tau zoo dua.
4. Kev nyab xeeb thiab kav ntev
Kev nyab xeeb yog qhov tseem ceeb ntawm lub roj teeb no. Tus qauv tsim tiv thaiv kom tsis txhob tawm thiab suav nrog kev tiv thaiv overheating lossis tsis ua haujlwm sab hauv. Ua kom kawg, nws yogresistant rau corrosion, kub kub, thiab dej, ua rau nws txhim khu kev qha txawm nyob rau hauv xav tau kev pab sab nraum zoov ib puag ncig.
5. Lub Neej Ntev
Nrog iblub neej voj voogntawm ntau tshaj 4,000 qhov sib sib zog nqus tsub thiab tso tawm, lub roj teeb no yog tsim rau lub sijhawm ntev. Nws tswj kev ua haujlwm zoo ib yam txawm tias tom qab xyoo ntawm kev siv hnyav, muab kev pabcuam lub neej txog li kaum xyoo. Qhov kev cia siab ntev ntev no yuav pab koj kom tsis txhob muaj cov nqi thiab muaj kev cuam tshuam ntau zaushloov.
Cov yam ntxwv ua haujlwm
Safer Thiab Ntse
Vim li cas CoPow Roj Teeb muaj kev nyab xeeb dua
Yog vim li cas CoPow Roj teeb yog Smarter
CoPow roj teeb, nyab xeeb thiab ntse dua, ib txwm txias.
Koj Qhov Zoo Tshaj Supplierrau 48V 105Ah Lithium roj teeb
1. StrongSciientificRtshawb nrhiavCapeev xwm
Copow yog ibLiFePO4 roj teebChaw tsim tshuaj paushauv qab Huanduy. Nws cov roj teeb yog tsim los ntawm ib pab kws tshaj lij engineers los ntawm BYD, CATL, thiab EVE, kom ntseeg tau tias cov roj teeb tsis yog tsuas yog ua tau raws li cov qauv kev lag luam xwb.
2. Kev davBkev siv nyiaj
Copow lub roj teeb xa khoom lag luam tau nthuav dav mus rau ntau dua 40 thaj chaw thoob ntiaj teb, thiab nws muaj kev nyab xeeb dua, ntse duaLiFePO4 golf laub roj teebtau dhau los ua qhov kev xaiv zoo rau cov neeg siv khoom thoob plaws ntiaj teb.
3. Muaj zogCompetitiveness
Raws li qhov siab - zoogolf laub roj teeb manufacturers, Copow's R & D pab pawg tsom mus rau kev txhim kho, tsim, thiab tsim cov roj teeb lithium siab heev. Los ntawm kev sib xyaw ua ke zoo tshaj plaws, muaj kev nyab xeeb tshwj xeeb, thiab lub neej ntev, lawv cov khoom tshiab ua tiav kev lag luam ntau tshaj plaws.
4. Kev tshaj lijCustomization
Txawm hais tias koj xav tau OEM ntau lawm, tsim koj tus kheej lub npe, lossis ua ib qho me me -batch purchase, Copow Battery tuaj yeem ua tau raws li koj xav tau. Peb kuj muab kev pabcuam pub dawb thiab tuaj yeem ua taucustomize golf laub roj teebspecifications raws li koj xav tau.
5. Akev lees paubCertification
CoPow tuav ntau daim ntawv pov thawj thoob ntiaj teb, kom ntseeg tau tias nws cov khoom ua tau raws li cov qauv kev lag luam rau kev nyab xeeb, kev ntseeg siab, thiab kev tiv thaiv ib puag ncig. Nws 48V lithium{2}}ion golf laub roj teeb tsis tsuas yog ua raws li cov ntawv pov thawj tseem ceeb xws liCE, UN38.3, IEC 62619, thiab MSDS, tab sis qee cov khoom kuj tau txaisRoHS, FCC/EMC, thiab TUV-CB ntawv pov thawj, tag nrho lav cov khoom zoo thiab kev ua haujlwm.
6. Zoo meej Service
Copow muaj ib qho yooj yim - nres kev pab cuam, suav nrog 24/7 online kev txhawb nqa cov neeg siv khoom, ntau txoj kev xa khoom, thiab 5-8 xyoo lav rau nws cov khoom siv roj teeb golf.
TOP CoPow R&D Team
Nrog 20 xyoo dhau los ntawm qhov nruab nrab
Nrog tshwj xeeb-tseem ceeb cov kws tshaj lij ua tus pob txha,
CoPow R & D pab neeg tsis tu ncua rau kev tsim kho thev naus laus zis.
Cov txheej txheem ntau lawm ntawm Copow LiFePO4 Roj teeb
Copow siv ib qho kev nyab xeeb thiab kev tswj xyuas ntau lawm los saib xyuas cov khoom zoo thiab tswj kev ua haujlwm siab.
Peb lub moj khaum tswj kev ua tau zoo yog tsim tshwj xeeb los tiv thaiv peb cov neeg siv khoom txaus siab. Tsis tas li ntawd, peb 105Ah lithium{2}}ion roj teeb tau raug lees paub, muab cov neeg siv khoom muaj kev thaj yeeb nyab xeeb thiab kev ntseeg siab hauv lawv qhov kev yuav khoom.
Daim ntawv thov ntawm 48v 105ah Lithium roj teeb
Kev tshuaj xyuas neeg siv khoom
CoPow roj teeb, nyab xeeb thiab ntse dua, ib txwm txias.
Ib txwm saib xyuas los ntawm cov neeg siv khoom thoob plaws ntiaj teb.
FAQ
(1). Yuav ua li casMib yamLyamBroj teebDua 48vGolf uaCkos duabNeed?
Feem ntau 48 volt lithium ion golf laub roj teeb yuav siv yim 6V roj teeb, rau 8V roj teeb, lossis plaub 12-volt roj teeb. Tsawg dua tab sis siab dua-voltage lithium roj teeb tuaj yeem txo koj cov nqi ua ntej.
hais txog tsab xov xwm
48v Golf Cart roj teeb nqi npaum li cas?
(2). Dab tsiIs covOpimumVoltage rau aGolf uaCkos duab?
Cov72V golf laub roj teebmuab lub zog ntau dua, ntev dua, thiab kev ua haujlwm siab dua, ua rau nws tsim nyog rau cov neeg siv uas xav tau kev ua haujlwm siab heev. Txawm li cas los xij, nws cov khoom thiab cov nqi kho mob kuj yog siab dua.
Hauv qhov sib piv, 48V golf lub laub roj teeb muab lub zog txaus rau kev siv txhua hnub, los ntawm tus nqi qis, thiab muaj kev lag luam ntau dua kev lag luam. Yog li ntawd, yog tias koj ua qhov tseem ceeb ntawm kev ua haujlwm siab, 72V yog qhov kev xaiv zoo, thaum lub 48V yog qhov zoo tagnrho rau cov uas muaj nuj nqis rau tus nqi -kev ua tau zoo thiab kev ua haujlwm zoo.
(3). UaGolf uaCkos duabLyamBroj teebNua edWaterMkev tsis txaus siab?
Lead-acid golf laub roj teeb yuav tsum tau saib xyuas tas li, uas yog lub sijhawm-siv thiab cumbersome. Hauv qhov sib piv, cov tsheb golf nrog cov roj teeb lithium xav tau yuav luag tsis muaj kev saib xyuas txhua hnub, ua rau lawv yooj yim dua thiab hassle - dawb.
(4). yog 48vGolf uaCkos duabFastertib 36vOtsis?
Piv nrog rau 36V system, cov tsheb golf tau nruab nrogLithium roj teeb rau 48V golf laubmuab lub zog muaj zog, pib nrawm dua, thiab nrawm dua. Nyob rau tib lub sijhawm, lawv kos tsawg dua tam sim no, tso cai rau ntau qhov ntev thiab kev ua tau zoo tag nrho.
